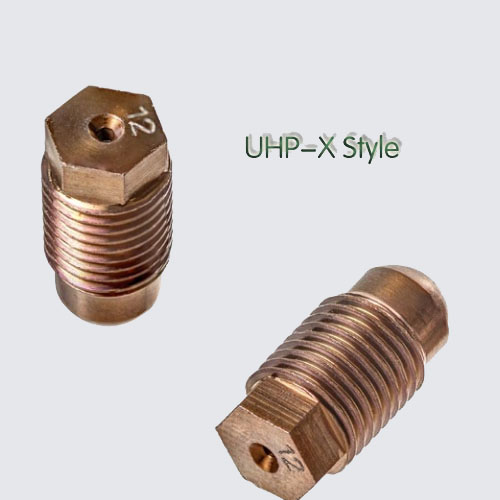

The high performance sapphire nozzle type UHP-X Stype is used first and foremost by our customers for surface treatment. This model was designed as a pointed nozzle for hand lance operation, or as an insert for a rotary nozzle for paint stripping on ships, or as an insert for spray-bars. Experience has shown that the flow straighteners you can achieve 10% more performance with this nozzle.
The nozzle is characterized above all by its service life, efficiency and quality and can be used up to an operating pressure of 3000 bar. The nozzle body consists of a one-piece construction
with rolled thread and formed/forged hexagon socket. This manufacturing process gives our nozzle bodies higher strength reserves compared to one-piece/clamping parts.
The nozzle neck is manufactured very precisely and has a perfect concentricity with the sealing edge. The sealing edge has no roundings or double angles and a greater wall thickness than conventional nozzles. Therefore there can be no deformation of the nozzle body at the sealing
edge.
The heart of the nozzle, its the sapphire has a consistent and high quality. All sapphire are checkedfor scratches, cracks and flow.
This nozzle was subjected to a burst and pressure test by an accredited testing laboratory STS 0052 according to harmonized standard EN 12162+A1:2009 and withstood the 30 minute load of 3930 bar.
